HDPYX1600-G

HDPYX1600-G

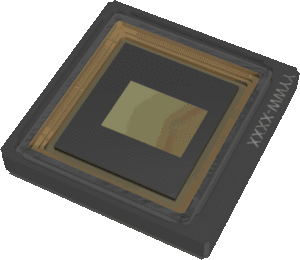

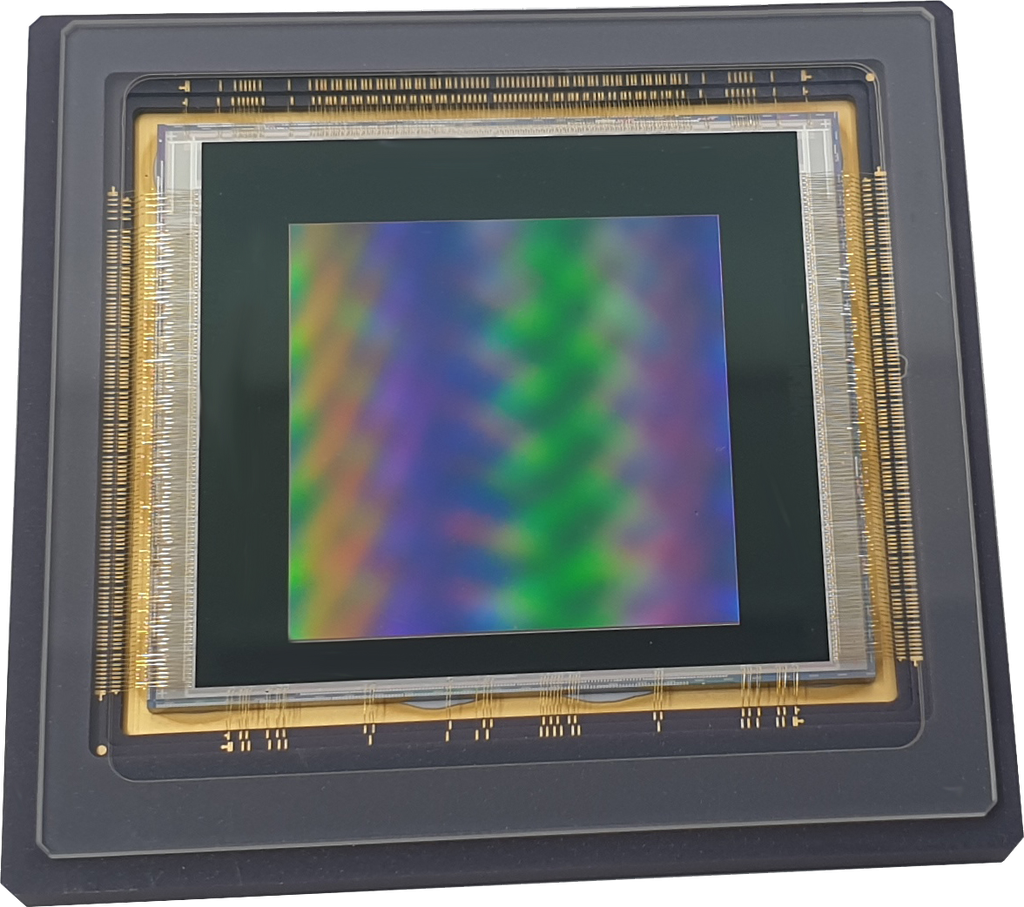

The HDPYX 1600-G is the right CMOS image sensor for low light applications featuring High Dynamic Range (HDR), high speed, low noise and high sensitivity.

Contact us

Login required

Features

Resolution Class 16 MegaPixels
Shutter Mode Global shutter, Low noise
Pixel Size 4.4 µm
Ultra-Low Crosstalk Deep Trench Isolation Technology (DTI)
Analog Binning 2x2 Charge domain
Color Filter Array RGB Bayer or monochrome
Frame Rate 76 fps (in 12bits High Speed mode)
Wide Dynamic Range With dual gain on-chip reconstruction
Digital corrections FPN / RTN / Contrast expansion
Features (ROI, Parameters ...) 2 Contexts
Output Format 32x LVDS of Sub-LVDS
Control Serial Interface (SPI) Yes

Applications

  1. Night Vision and Surveillance Systems
  2. Low Flux Scientific Imaging
  3. Defense / Image Fusion
  4. New Space

Related Kits and accessories

To test the Image quality of our HDPYX1600-G, we put at your disposal an Evaluation Kit that you can rent for 40 days.

Get Information
GENEPYX Camera for HDPYX1600-G
Sensor Documents
Evaluation Kit
Application Notes
Tools
Image Samples
Login Required Documents are accessible to authorized users only
