HDPYX 330-G

HDPYX 330-G

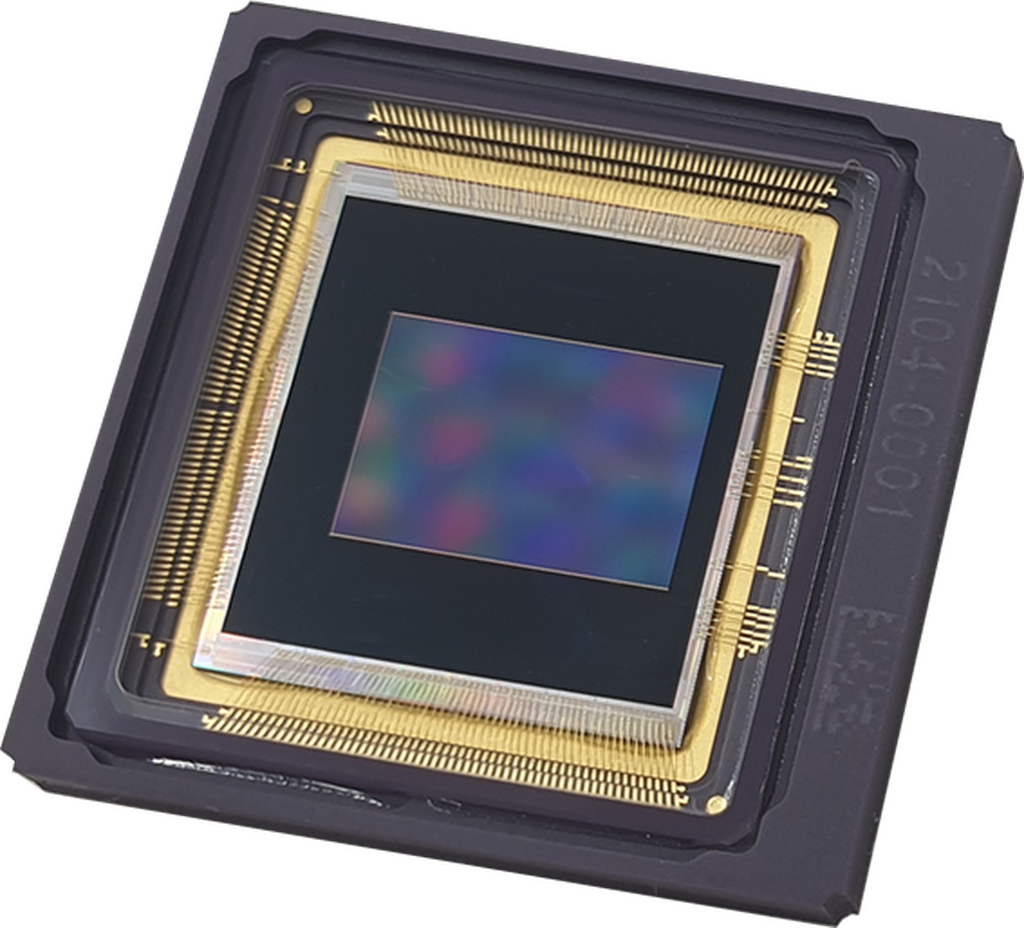

The HDPYX330-G is the right CMOS image sensor for low light applications featuring High Dynamic range (HDR), high speed, low noise and high sensitivity.

Contact us

Login required

Features

Resolution Class 3,3 MegaPixels
Shutter mode Global Shutter Low noise
Pixel Size 4.4µm
Ultra-Low crosstalk Deep Trench Technology (DTI)
Analog Binning 2×2 Charge domain
Color Filter Array RGB Bayer or Monochrome
Frame rate 200fps (in High Speed Mode)
Wide-Dynamic-Range Dual Gain with On-chip reconstruction
Digital corrections FPN / RTN / Contrast Expansion
Features (ROI, Parameters...) 2 x Contexts
Output Format 16 x LVDS/Sub-LVDS
Control serial Interface (SPI) Yes

Applications

  1. Night Vision and surveillance systems
  2. Defense / Image fusion
  3. New Space
  4. High speed moving imaging

Related Kits and accessories

To test the Image quality of our HDPYX330-G, we put at your disposal an Evaluation Kit that you can rent for 40 days.

Get informations
Sensor Documents
Evaluation Kit
Application Notes
Tools
Image Samples
