Features

GIGAPYX is a family of large image sensors designed for those applications that demands the best of image quality CMOS sensor has to offer. Manufactured using the most advanced CIS technologies available, it offers low noise, sensitivity, intra-scene dynamic range, resolution and frame rate with no compromises. Ranging from the optical 1.5” format (14 x 18 mm2) up to 6×6 and 6×7 Medium-formats (73 x 58 mm2), this family of sensor is compliant with the major large scale optical formats of high quality applications.

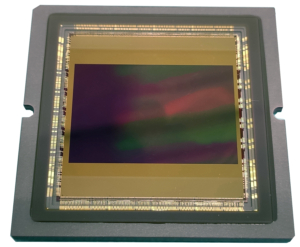

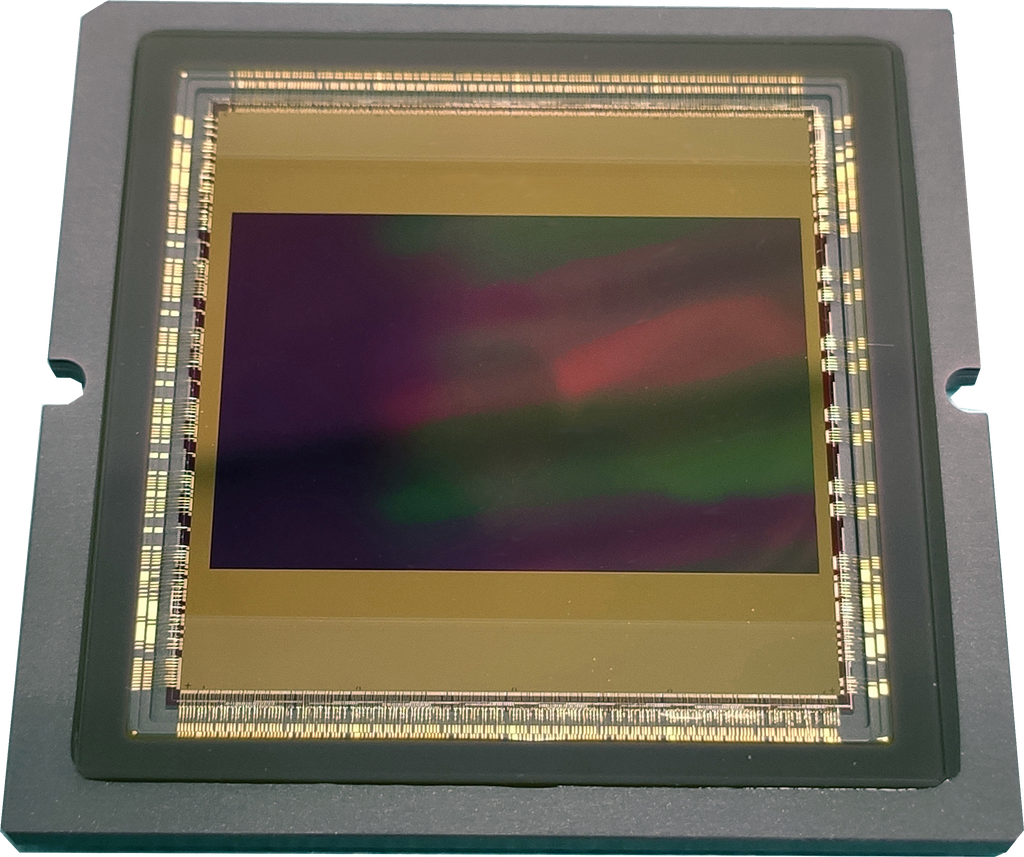

GIGAPYX 4600 is the first release of this family of sensors: it is a Full-Frame (35 mm) sensor, with 46 Megapixels.

Key Features

  • Shutter modes : Rolling Shutter

  • Resolution : 46 MegaPixels

  • Frame rates: 120fps

  • Monochrome & RGB Bayer

  • Back-Side Illumination (BSI) Technology

  • Ultra-Low Crosstalk : Deep Trench Isolation Technology

  • High Dynamic Range : Up to 96db in Dual Gain

  • Multiple ROI modes

  • Output Format : LVDS

  • SPI interface controller

  • I/Os for Multipurpose triggers and Shutter & Flash synchronization

Shutter mode : Rolling Shutter

  • Pixel : 4,4µm pitch
  • 12 to 14bits ADC

Resolution : 46 MegaPixels

  •  8320 x 5500
  • 24 x 36mm format
  • Aspect Ratio : 3:2

Frame rates :

  • 120fps in Full resolution
  • 220fps in 8k

Bask-Sided Illumination (BSI) technology :

  • QE > 80% peak
  • High Full-Well capacity : >60ke-

High Dynamic Range :

  • Dynamic Range : Up to 96dB Linear intra-pixel
  • Dual Gain with off-ship reconstruction

Advanced ROI selection unit :

  • Up to 6 horizontal regions of Interest (full width)
  • Vertical Flip

Output format :

  • 32 to 256 LVDS data lanes @ 860Mbps

SPI interface controller :

  • Up to 10MHz

I/Os for Multipurpose triggers and Shutter & Flash synchronization :

  • Frame and Exposure external triggering
  • Multi-Frame sequencing (up to 6)
  • Professional Video
  • High resolution inspection
  • Aerial surveillance
