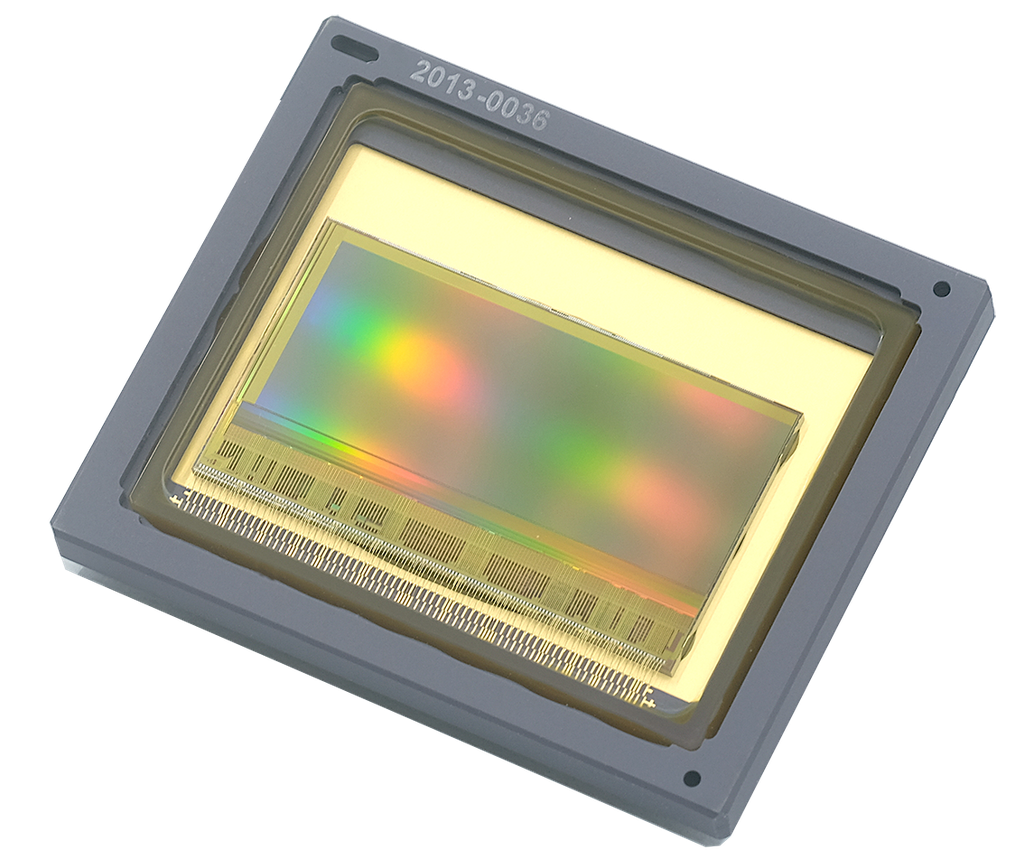

The HDPYX-300 Sensor is a high performance, high dynamic range 3MP image sensor.

Designed for Instrumentation, Scientific and high end security market as well as demanding HDR machine vision applications, the device offers extremely high dynamic range with a unique dual core architecture. The sensor works in different Global or rolling shutter modes.

Key Features

  • Shutter modes : Electronic Rolling Shutter with CDS (ERS)

  • Wide-Dynamic-Range capabilities and on-chip computing

  • Digital corrections

  • Anti-blooming function & black sun effect correction

  • Frame rates

  • Advanced ROI selection unit

  • Output format

  • 10bits temperature sensor

  • SPI interface controller

  • I/Os for Multipurpose triggers and Shutter & Flash synchronization

Shutter modes : Electronic Rolling Shutter with CDS (ERS)

  • Global Shutter Low-Noise with CQS (GSLN)
  • Global Shutter with UDS (GS)
  • Global Start Rolling Shutter (GRS)

Wide-Dynamic-Range capabilities and on-chip computing

  • Mode 1: In-pixel dual gain with automatic switch selection (1 frame readout, true intra-scene HDR)
  • Mode 2: Line-interlaced (odd/even) dual integration times (configurable ratio)

Digital corrections

  • Automatic column offset correction
  • Programmable digital gain and offset
  • HDR Interpolation filter for mode 2 (sat. pixels compensation)
  • HDR Reconstruction filter (compensation of dual integration and/or dual gain mode)

Anti-blooming function & black sun effect correction

Frame rates:

  • Up to 100fps in Full-HD (1968 x 1088), 12bits in ERS or GS
  • Up to 45fps in Full-ROI (2800 x 1088), 14bits in ERS with HDR

Advanced ROI selection unit:

  • H&V flip
  • H&V Sub-sampling
  • Fully programmable ROI Selection down to pixel resolution
  • Configurable dark reference output

Output format :

  • Configurable CMOS, LVDS or sub-LVDS data output
  • 2 data-output banks, each with 4 to 6 LVDS pairs
  • Up to 20bits data output

10bits temperature sensor

SPI interface controller

I/Os for Multipurpose triggers and Shutter & Flash synchronization

  • Instrumentation
  • Space
  • Science
  • Medical
  • High end Security Market
  • Demanding HDR Machine Vision
